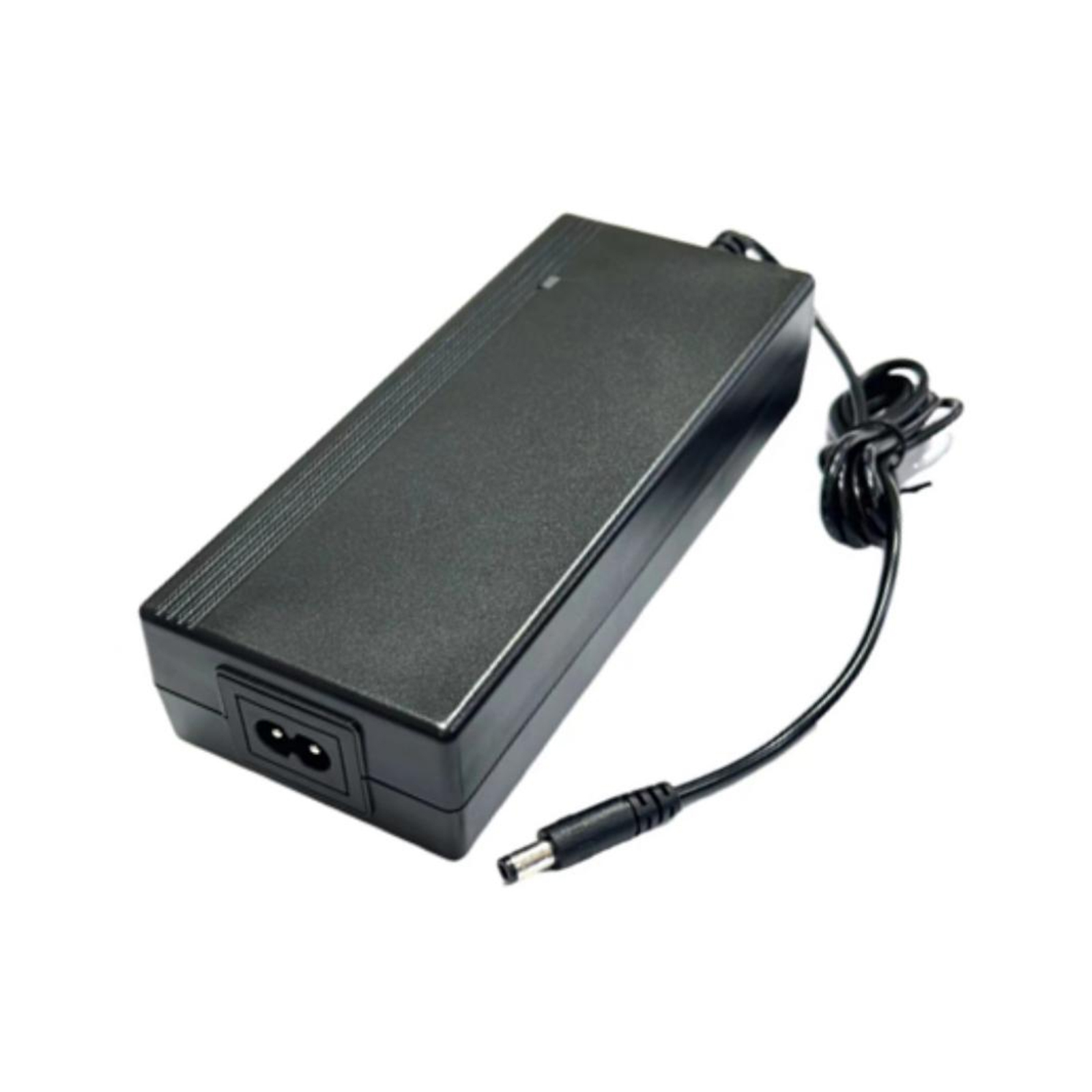

150W Series

◆ Internationally compatible full-range AC input 90～264VAC

◆ Compliant with EN55032 Class B and CISPR/FCC Class B

◆ Continuous short circuit protection

◆ Overload and overvoltage protection

◆ Energy efficiency rating VI

◆ Compliant with DOE, CEC, EU, ERP

◆ Class II power supply (no grounding pin)

◆ Safety certificates:

Input：

Voltage range: 90～264Vac

Frequency range: 50 to 60Hz

AC current: 1.0A Max

Inrush current: Cold start @ 25 degrees Celsius, no damage during startup @ 240Vac

Leakage current: Maximum 0.25mA

Output：

Protection time: 5ms typ. @115Vac

Short circuit protection: Continuous (automatic reset)

Environmental and Other Specifications:

Withstand Voltage: Input to Output = 3000VAC

Operating Temperature: 0~35℃

Storage Temperature: -20~60℃

Operating Humidity: Maximum 85% RH, non-condensing

Cooling: Natural convection

Switching Frequency: 40-65KHz (Typical)

MTBF: MIL-HDBK-217F, GB, 25°C/115VAC...50Khrs min.

Altitude: 5000m

Safety and EMC:

Electromagnetic Compatibility (EMC) Emissions and Immunity: EN55032 Class B, FCC Part 15 Class B, EN61000-3-2, EN61000-3-3, EN55024. Safety Standards: IEC62368, EN62368, UL62368, IEC60335, EN60335, IEC61558, EN61558, UL1310 Certification Passed.

Remarks:

1. Voltage accuracy is measured at the plug terminal under 60% load conditions.

2. Ripple and noise measurement method: 0.1uF and 10uF capacitors are connected in parallel at the terminal, and measurements are performed at a 20MHz bandwidth.

3. Linear regulation measurement method: Under rated load, test from low voltage to high voltage 100V to 240V.

4. Load regulation measurement method: From 60% to 100% of rated load and 60% to 20% (60% +/- 40%).
