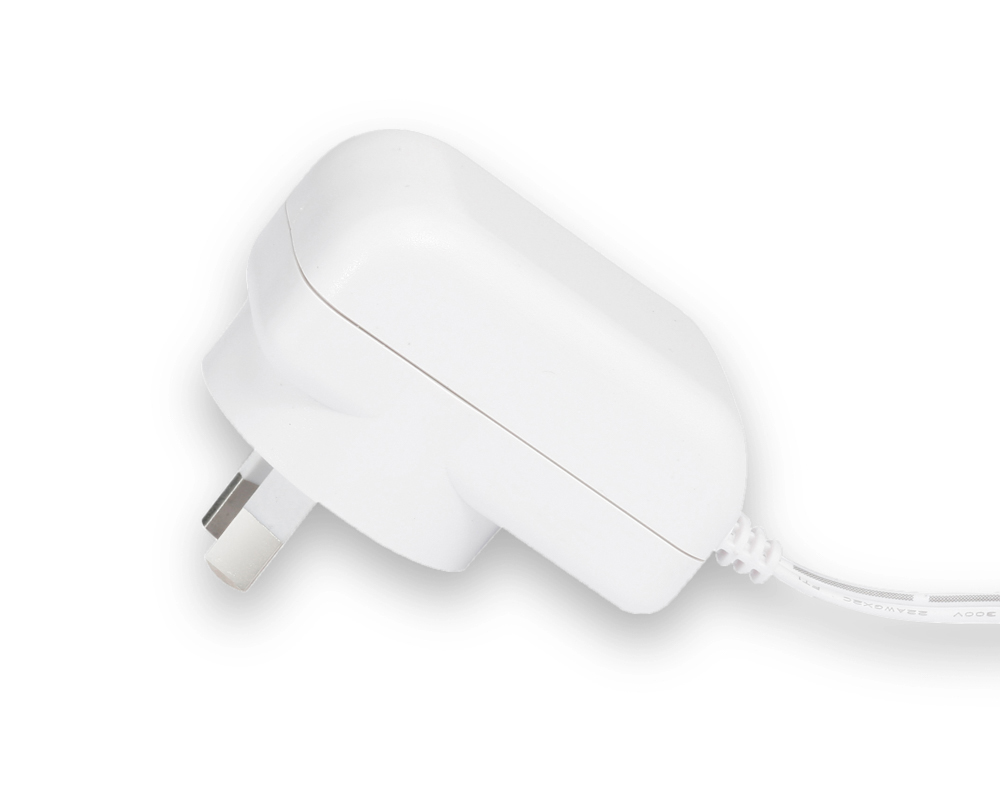

6W Series
Wall mounted power adapter
▪ 6 Watts AC-DC switching wall mount power adapter
▪ 3V to 26V,0.01A to 1.2A output
▪ Energy Efficiency Level VI(78.72% Min, At 115/230Vac)
▪ Over-load and short circuitprotection, 100% burn-in test
▪ 3 years lifetime warranty
▪ Safety certificates:

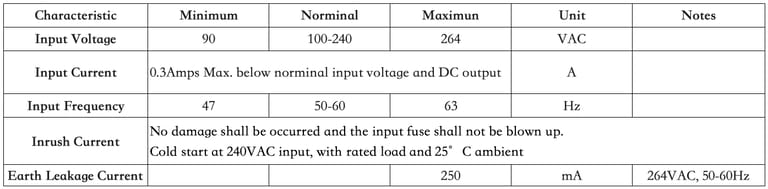

◆Input

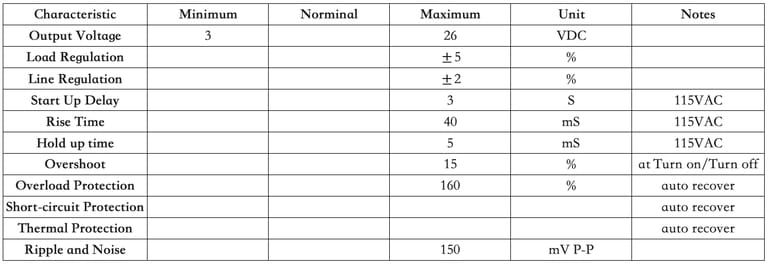

◆Output
Note: At 115/230VAC 25°C input and output Min. and Max. Load, the ripple and noise are as above when measure with Max. Bandwidth of 20 MHz and parallel 47uF/0.1uF, crossed connected at testing point.
◆ Dropping Packed
Drop the height is 1000mm.
The horizontal surface Consists of hardwood at least 13mm thick, mounted on two layers of plywood each 19mm to 20mm thick, all supported on a concrete or equivalent non-resilient floor.
◆ Vibration
Operating: IEC 721-3-3 3M3
5-9Hz, A=1.5mm
Transportation: IEC 721-3-2 2M2
A=3.5mm
200-500Hz, Acceleration = 15m/S2
No permanent damage may occur during testing.
5-9Hz,
9-200Hz, Acceleration = 5m/S2
200-500Hz, Acceleration = 15m/S2
Axes, 10 cycles per axis
No permanent damage may occur during testing.
The SAMPLE has to restore to its original situation after power off/on...
Dielectric Strength Hi-Pot:
Primary to secondary: 4242VDC/5mA/60S for type test.
Insulation Resistance:
Primary to secondary: 20ΜΩ Min at 500VDC.
EMI Standard
Meet the limits of:
◆ FCC part115 class B rules
◆ EN55022 class B rules
◆ GB9254-1998, GB17625.1-2003
◆ AS/NZS CISPR22:2006
